Thermal Imaging: Seeing Heat Loss in Real Time

Heat loss in buildings is a common problem that often goes unnoticed until energy bills skyrocket or indoor comfort drops. Many homeowners and businesses struggle to pinpoint where their heating systems are leaking warmth, leading to wasted energy and higher costs. Thermal imaging technology offers a clear solution by revealing heat loss in real time, helping people take targeted action to improve energy efficiency.

This post explores how thermal imaging works, its practical benefits, and real-world examples of how it can help you save money and stay comfortable.

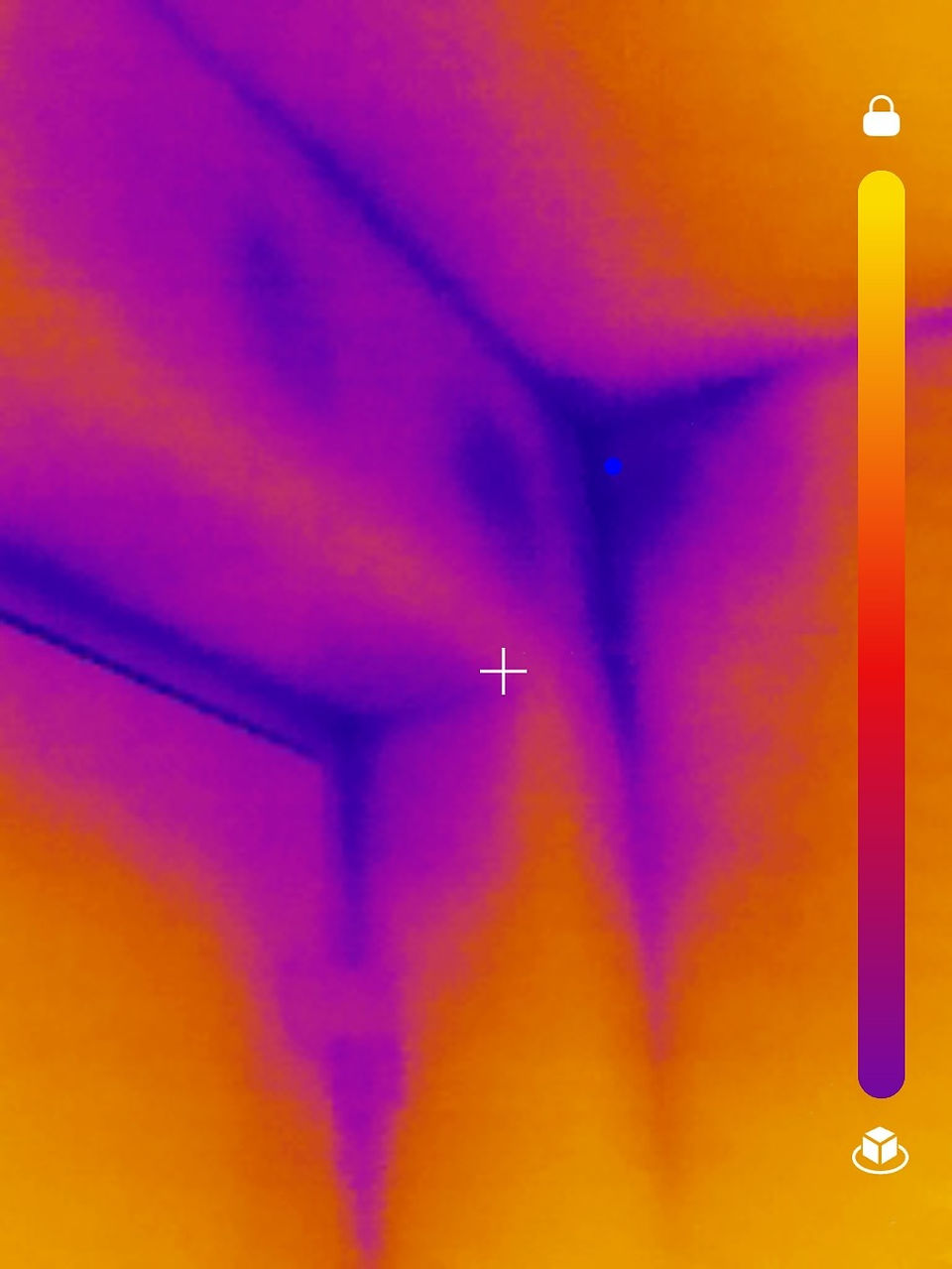

Left: Internal thermal image showing cold corner. Right: Thermal camera in use to check for warmth leaking out of the building

How Thermal Imaging Technology Works

Thermal imaging cameras detect infrared radiation, which is the heat emitted by objects. Unlike regular cameras that capture visible light, thermal cameras visualise temperature differences by converting infrared radiation into a color-coded image. Warmer areas appear in bright colours like red or yellow, while cooler areas show up in blues or purples.

This technology allows users to see heat escaping through walls, windows, roofs, and doors. It can also detect cold spots caused by drafts or moisture issues. Thermal imaging works in real time, providing immediate feedback on where energy is leaking.

Key Features of Thermal Imaging

• Non-invasive: No need to open walls or remove insulation to find heat loss.

• Fast results: Instant images show problem areas clearly.

• Versatile: Useful for both residential and commercial buildings.

• Portable: Handheld cameras make inspections easy and flexible.




Benefits of Thermal Imaging for Homeowners and Businesses

Using thermal imaging to identify heat loss offers several advantages that go beyond just spotting cold spots.

Improve Energy Efficiency

By locating exactly where heat escapes, you can seal gaps, add insulation, or upgrade windows in targeted areas. This focused approach avoids unnecessary repairs and maximises energy savings.

Reduce Heating Costs

Fixing heat loss reduces the workload on heating systems, lowering fuel or electricity consumption. Many users report cutting their heating bills by 10% to 30% after addressing issues found with thermal imaging.

Enhance Comfort

Eliminating drafts and cold spots creates a more consistent indoor temperature. This means fewer chilly rooms and a more pleasant living or working environment.

Prevent Structural Damage

Thermal imaging can also detect moisture intrusion and insulation failures that might lead to mould or rot. Early detection helps protect your building’s integrity.

Practical Examples of Thermal Imaging in Action

Example 1: Finding Drafts Around Windows and Doors

A homeowner noticed some rooms felt colder despite the heating running constantly. A thermal scan revealed cold air leaking around poorly sealed window frames and door gaps. After installing weatherstripping and sealing cracks, the indoor temperature stabilised, and heating costs dropped noticeably.

Example 2: Inspecting Roof Insulation

A business owner used thermal imaging to check the roof insulation of their warehouse. The images showed uneven heat loss in certain sections, indicating missing or compressed insulation. Adding insulation in those spots improved energy retention and reduced heating expenses during winter.

Example 3: Detecting Plumbing Leaks and Moisture

Thermal imaging can spot temperature differences caused by water leaks behind walls. A property manager found a hidden pipe leak early by scanning walls with a thermal camera. Fixing the leak prevented costly water damage and mould growth.

How to Use Thermal Imaging for Your Property

Hire a Professional or DIY?

Thermal imaging cameras have become more affordable and user-friendly. Homeowners can rent or buy basic models for simple inspections. However, professionals have advanced equipment and expertise to interpret images accurately and recommend solutions.

When to Conduct Thermal Imaging

• During cold weather when heat loss is most visible.

• After renovations or insulation upgrades to verify effectiveness.

• When you notice uneven heating, drafts, or high energy bills.




What to Look For

• Bright spots on exterior walls indicating heat escaping.

• Cold patches inside near windows, doors, or vents.

• Temperature differences in ceilings or floors.

• Signs of moisture or leaks behind surfaces.




Taking Action After Thermal Imaging

Once you identify heat loss areas, consider these steps:

• Seal gaps with caulk or weatherstripping.

• Add or replace insulation in walls or loft spaces.

• Upgrade to energy-efficient windows and doors.

• Repair leaks or moisture problems promptly.

• Maintain heating systems for optimal performance.




These improvements not only save energy but also increase property value and comfort.
